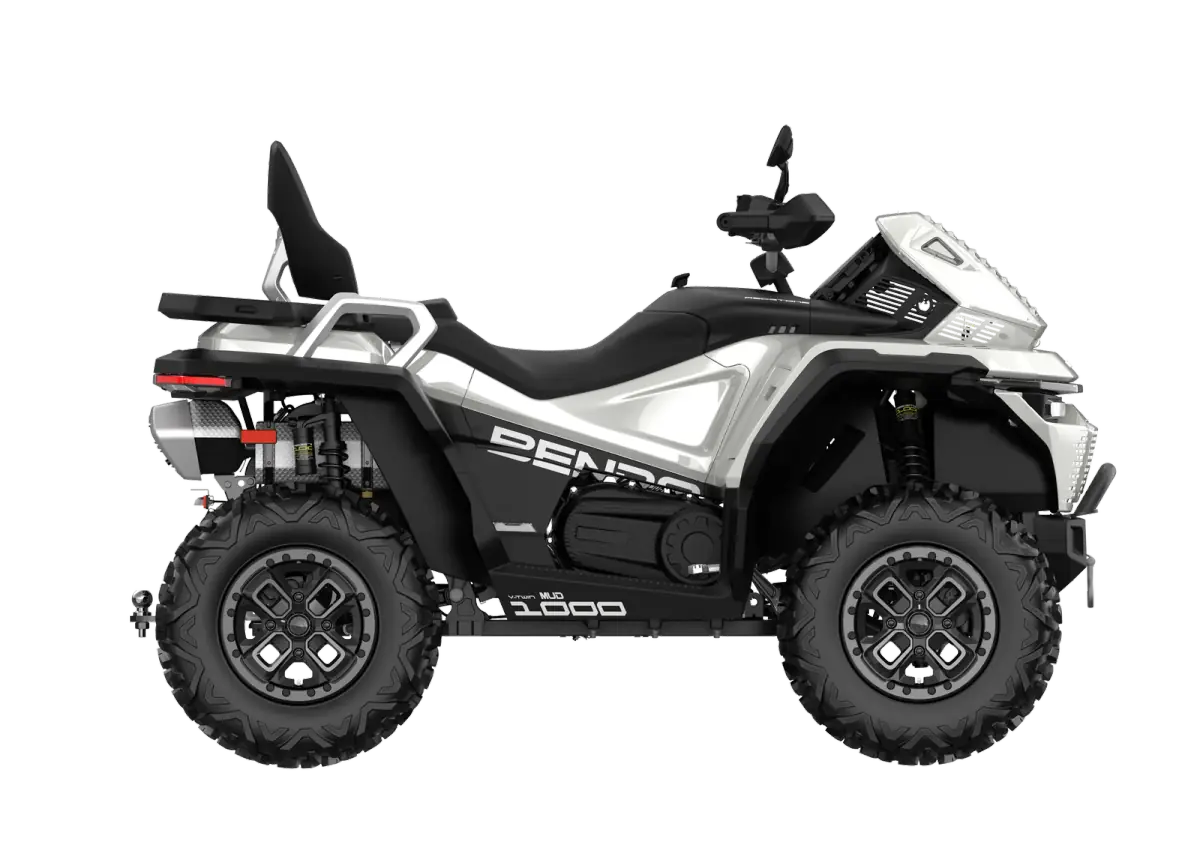

Redstone 1000 MUD R2
The mud-terrain Redstone, raised and re-tired for the toughest ground
997.1cc
102 hp
365 mm (390mm raised)
Overview
Built on the same 997.1cc, 102hp V-twin platform as the Redstone 1000 R2, the MUD R2 trades in mud-specific paddle-pattern tires, a raised ride height and a high-mounted radiator fan with reworked CVT intake/exhaust venting so it keeps its cool when the going gets deep and wet.
- 01997.1cc liquid-cooled V-twin, 102hp
- 02Mud-specific 30" front/rear tires
- 03365mm ground clearance (390mm raised)
- 04High-mounted radiator fan for deep-mud cooling
- 05Selectable 2WD/4WD with differential lock
- 06Tri-Mode drive: Standard / Work / Sport
01
All the power you need
A Benda in-house 997.1cc liquid-cooled V-twin delivering 102hp, tuned for smooth, vibration-free power. Intelligent electronic throttle gives precise control, quicker response and better fuel efficiency — with strong low-speed torque whether you are working or playing.
02
High strength, light weight
A chromoly steel and forged aluminium frame keeps unsprung weight down without giving up rigidity, while long-travel double A-arm suspension and adjustable gas shocks soak up broken ground at speed.
03
Effective thermal management
An oversized radiator with a high-flow fan and reworked CVT intake and exhaust venting keeps temperatures in check through deep sand and slow technical work — the two things that cook an air-starved engine in Qatar.
04
Avant-garde matrix LEDs
Automotive-grade matrix LED lighting that does more than look sharp — a wide, evenly lit beam that puts usable light where you are actually steering after sundown.
Full Specifications
Engine & Drivetrain
- Engine
- V2, 4-Stroke SOHC, Liquid-Cooled
- Displacement
- 997.1cc
- Max Power
- 102 hp
- Max Torque
- 92 N·m @ 6,500 rpm
- Transmission
- CVT — L/H/N/R/P
- Drive Train
- Selectable 2WD/4WD with Diff-Lock
Suspension & Brakes
- Front Suspension
- Dual A-Arm, 180mm travel, adjustable gas shocks
- Rear Suspension
- Independent Trailing Arm, 230mm travel, adjustable gas shocks
- Brakes
- Dual 220mm Hydraulic Discs
Tires & Wheels
- Front Tires
- 30×9-14" mud-terrain
- Rear Tires
- 30×11-14" mud-terrain
- Wheels
- 14" Aluminum
Dimensions & Capacity
- Dimensions (L×W×H)
- 2370 × 1280 × 1520 mm
- Wheelbase
- 1500 mm
- Ground Clearance
- 365 mm (390mm raised)
- Dry Weight
- 465 kg
- Towing Capacity
- 792 kg
- Fuel Tank
- 30 L
- Seat Height
- 1030 mm
